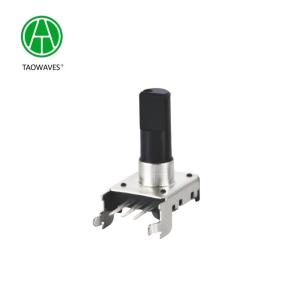

Portable Incremental Rotary Encoder Switch for Robotics

Model NO. : EC12A00H01

Readout Mode : Contact

Operating System : Contact Brush Type

Signal Output : Voltage Output

Axle Sleeve Type : Empty Type

Package : -

Installation Form : Axle Sleeve Type

Brand : Taowaves

Axonia : -

Transport Package : Carton

Specification : 12mm

Trademark : TAOWAVES

Origin : China

Customization : Available

Type : Rotary Encoder

Working Principle : Incremental

Contact Now

EC12 Incremental Encoder with Rotary Plastic Handle Vertical Pin Thin Base

EC12 Series Product Specifications

1.Electrical Characteristics
Rated voltage:	DC 5V
Resolution:	12/24pulses/360°
Insulation resistance:	100MΩ Min at DC 250V
Dielectric strength:	1 minute at AC300V
Phase Difference:	12≥6.7ms / 24≥3.4ms

2.Mechanical Characteristics
Total ratational angle:	360°(Endless)
Detent torque:	3~15mN.m.(30~150gf.cm)
Shaft wobble:	0.7*L/30mm p-p Max(L: mounting height)
Push-Pull Strength of shaft	8KG

3.Endurance Characteristics
Rotational life:	30,000cycles
Operating temperature range:	-30ºC to+80ºC
Storage temperature range:	-40ºC to+85ºC

Our Factory
Portable Incremental Rotary Encoder Switch for Robotics

Application:
Portable Incremental Rotary Encoder Switch for Robotics

FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.
2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.
3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)
4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.
5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.
6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.

Product Tags:

Portable Robotics Incremental Rotary Encoder Switch

Robotics Rotary Encoder Switch
